MPC - TWO - PIECE PIPE CLAMP

Utility Channels And Accessories

MPC – TWO – PIECE PIPE CLAMP

Ø10 holes for M 8 x 30 bolts.

Bolts and nuts included

Category: Utility Channels And Accessories

Description

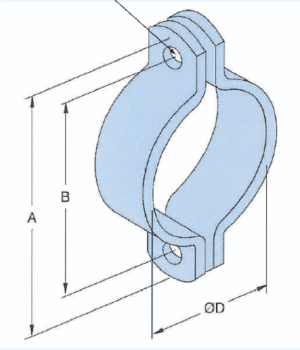

Part No.	Dimensions			Mass Kg
Part No.	ØD	A	B	Mass Kg
MPC-019	19	83	59	0.10
MPC-021	21	85	61	0.10
MPC-025	25	89	65	0.11
MPC-027	27	91	67	0.11
MPC-032	32	96	72	0.14
MPC-034	34	98	74	0.14
MPC-038	38	102	78	0.15
MPC-043	43	107	83	0.15
MPC-048	48	112	88	0.15
MPC-051	51	115	91	0.15
MPC-060	60	124	100	0.15
MPC-064	64	128	104	0.19
MPC-073	73	137	113	0.19
MPC-076	76	140	116	0.19
MPC-089	89	153	129	0.21
MPC-102	102	166	142	0.23
MPC-114	114	178	154	0.26
MPC-127	127	191	167	0.28
MPC-140	140	204	180	0.31
MPC-152	152	216	192	0.33
MPC-165	165	229	205	0.37

Note:

Standard Finish: Hot Dipped Galvanised

Material: 25 x 3

Working Load: 2.88 KN

Safety Factor: 2.5
