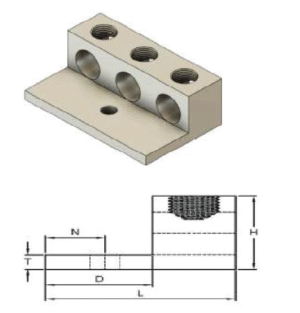

| Wire range | Dimensions | ||||||||
| Cat No. | Min. | Max. | Stud.
Hole Size |
Tang Length
[D] |
Tang
Thickness [T] |
Length
[L] |
Height
[H] |
Width
[W] |
Mtg. Hole to
Tang End Spacing [N] |
| MM-L-331-2 | 14 AWG | 2 AWG | 1/4 | 0.63 | 0.10 | 1.16 | 0.56 | 1.31 | 0.25 |
| MM-L-331-1/0 | 14 AWG | 1/10 AWG | 1/4 | 0.81 | 0.19 | 1.50 | 0.92 | 1.65 | 0.45 |
| MM-L-331-2/0 | 14 AWG | 2/10 AWG | 1/4 | 0.81 | 0.19 | 1.50 | 0.92 | 1.89 | 0.45 |
| MM-L-331-250 | 6 AWG | 250 MCM | 5/16 | 0.94 | 0.25 | 2.00 | 1.14 | 3.00 | 0.47 |
| MM-L-331-300 | 6 AWG | 300 MCM | 5/16 | 0.94 | 0.25 | 2.00 | 1.14 | 3.00 | 0.45 |
| MM-L-331-350 | 6 AWG | 350 MCM | 3/8 | 1.03 | 0.25 | 2.25 | 1.27 | 3.39 | 0.52 |
| MM-L-331-500 | 4 AWG | 500 MCM | 3/8 | 1.50 | 0.31 | 2.80 | 1.58 | 4.53 | 0.88 |
| MM-L-331-1000 | 500 MCM | 1000 MCM | 1/2 | 1.69 | 0.50 | 3.50 | 1.95 | 5.25 | 0.88 |
