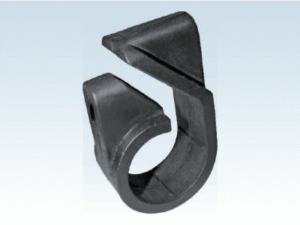

| Cable & Cleat selection | Cleat Details | |||||||||
| Design Number | Cable Diameter
A (mm) |
Dimensions (mm) | Approx
Weight g |
Roundhead
woodscrew for masonry, wood ins x No |
Screw
cable tray mm |
|||||
| B | C | D | SWL
(FOS 3) Kgf |
|||||||
| Min | Max | Min | Max | Max | ||||||
| MSCC 01 | 10.5 | 14.5 | 15 | 18 | 32 | 12 | 17 | 2.3 | 1¼ x 8 | M 4 x 30 |
| MSCC 02 | 12.2 | 16.7 | 17 | 22 | 36 | 14 | 22 | 3.4 | 1½ x 8 | M 4 x 35 |
| MSCC 03 | 14.6 | 19.8 | 21 | 26 | 43 | 16 | 32 | 5.5 | 1¾ x 8 | M 4 x 40 |
| MSCC 04 | 17.7 | 24.0 | 25 | 31 | 51 | 18 | 40 | 8.6 | 2 x 8 | M 4 x 45 |
| MSCC 05 | 21.7 | 28.5 | 30 | 37 | 57 | 20 | 47 | 12.4 | 2¼ x 12 | M 6 x 50 |
| MSCC 06 | 26.2 | 34.2 | 35 | 43 | 65 | 22 | 59 | 16.4 | 2½ x 12 | M 6 x 60 |
| MSCC 07 | 31.9 | 41.6 | 42 | 52 | 78 | 25 | 79 | 24 | 2¾ x 12 | M 6 x 70 |
| MSCC 08 | 39.3 | 51.1 | 50 | 62 | 91 | 26 | 82 | 35 | 3¼ x 12 | M 7 x 80 |
